Item no. Part number Designation/description Quant information
1 A 123 270 50 11  TRANSMISSION CASE

Replaced by: A 201 270 03 11
• A 124 270 13 05 [1 pcs.]
• A 124 277 06 14 [1 pcs.]
• A 201 277 00 80 [1 pcs.]

[109]
DELIVER ADDITIONALLY UP TO TRANSMISSION 400 NOV.83 1X201 300 42 30
[112]
Up to transmission: 206488
 -
1 A 201 270 03 11  TRANSMISSION CASE

Replaced by: A 201 270 06 11

[113]
As of transmission 206489
[116]
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO TRANSMISSION 3 073292
 -
1 A 201 270 06 11  TRANSMISSION CASE

Replaced by: A 201 270 07 11 		-
1 A 201 270 07 11  TRANSMISSION CASE 001
5 A 126 991 00 01  PIN
PAWL 		001
10 N 000007 010201  CYLINDRICAL PIN 001
15 N 000007 010102  CYLINDRICAL PIN 002
20 A 006 997 01 47  SEAL RING
RANGE SELECTOR 		001
20 A 009 997 48 47  SEAL RING
RANGE SELECTOR 		001
25 A 123 277 01 50  BUSHING

Replaced by: A 126 277 08 50

[085]
EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO TRANSMISSION 3 279583
 -
25 A 126 277 08 50  BUSHING
BRAKE BAND B2 		001
30 A 006 997 73 47  SEAL RING
BRAKE BAND B2 		001
35 N 005401 310000  BALL 001
55 A 115 997 06 30  SCREW PLUG 003
60 N 007603 008105  SEAL RING 003
65 A 201 271 03 84  OIL PIPE
SPEEDOMETER DRIVE 		001
70 A 011 997 14 48  SEAL RING
OIL PIPE 		001
75 A 126 270 10 50  BUSHING
(TEMPERATURE THROTTLE BUSHING) ROT 		001
77 A 126 277 00 42  OIL DEFLECTOR

Replaced by: A 140 277 00 42

[414]
THE OLD PART MUST NO LONGER BE INSTALLED
 -
77 A 140 277 00 42  OIL DEFLECTOR
TRANSMISSION CASE 		001
80 A 126 270 05 89  VALVE
SECONDARY PUMP B2

[099]
Up to transmission:
400: 3 077618;
408: 3 073842;
[101]
Up to transmission:
415: 3 083537;
409: 3 083317;
 001
90 A 126 270 27 79  VACUUM BOX BRAUN 001
95 A 126 277 00 81  COVERING 001
100 A 126 277 04 40  BRACKET 001
105 A 014 997 11 48  SEAL RING 001
110 A 126 277 20 75  PIN
VACUUM BOX 		001
110 A 126 277 93 75  PIN
VACUUM BOX 		001
111 A 126 270 93 79  VACUUM BOX
PARTS KIT BRAUN 		001
112 A 013 997 23 48  SEAL RING 001
113 A 126 277 75 40  BRACKET 001
114 A 126 987 07 45  LOCKING CAP 001
115 A 014 997 11 48  SEAL RING 001
116 A 126 277 86 75  PIN
VACUUM BOX 		001
117 A 123 277 10 31  PISTON
MODULATION PRESSURE 		001
120 A 126 277 21 40  BRACKET
VACUUM BOX 		001
125 N 914020 006000  COMBINATION BOLT 002
130 A 000 304 23 90  SOLENOID
(MAGNET COIL) 		001
130 A 000 304 27 90  SOLENOID
(MAGNET COIL) 		001
135 A 000 304 22 90  SOLENOID
(MAGNET FRAME) 		001
135 A 000 304 28 90  SOLENOID
(MAGNET FRAME) 		001
140 A 008 997 31 48  SEAL RING 001
145 A 008 997 30 48  SEAL RING 001
150 A 001 997 35 48  SEAL RING 001
155 A 115 304 01 60  SEAL RING 001
160 A 126 270 01 82  BREATHER 001
165 A 005 997 78 48  SEAL RING 001

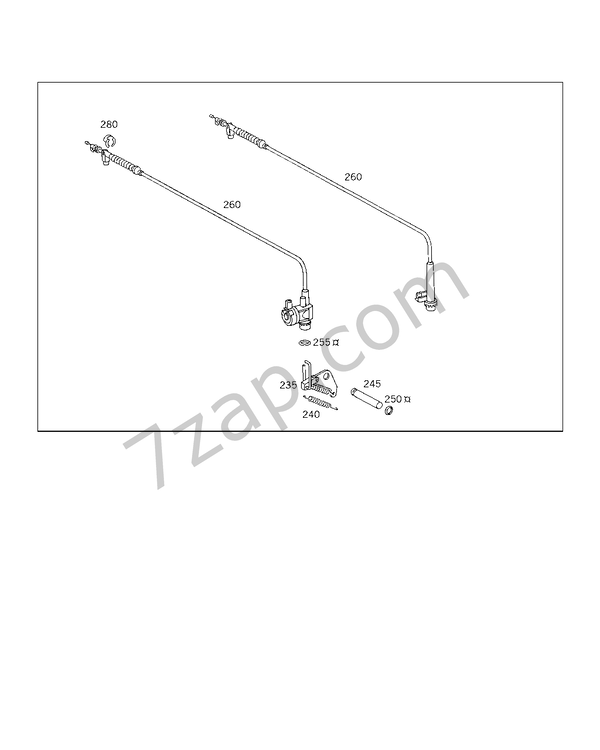

235 A 124 270 02 59  LEVER
CONTROL PRESSURE 		001
245 A 123 278 01 74  PIN
CONTROL PRESSURE 		001
250 A 005 997 77 48  SEAL RING

Replaced by: A 017 997 73 48 		-
250 A 017 997 73 48  SEAL RING
CONTROL PRESSURE 		001
255 A 011 997 22 48  SEAL RING

Replaced by: A 016 997 04 48 		-
255 A 016 997 04 48  SEAL RING
CABLE 		001
260 A 124 300 14 30  PART NAME MISSING

Replaced by: A 124 300 44 30 		-
260 A 124 300 44 30  CABLE
CONTROL PRESSURE 		001
280 N 912001 012000  LOCK
CABLE 		001
