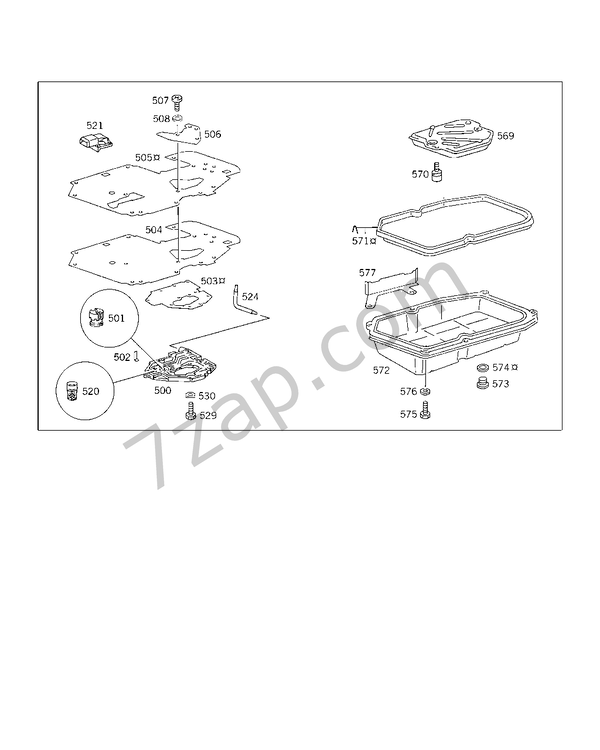

VALVE BODY ASSEMBLY,OIL PAN,GASKET KIT [Car] MERCEDES [EUROPA] [AUTOMATIC TRANSMISSION]W 4

Item no.	Part number	Designation/description	Quant	information
500	A 126 270 10 08	COVER BOTTOM	001
503	A 124 277 02 80	GASKET BOTTOM COVER	001
504	A 126 277 36 15	INTERMEDIATE PLATE TRANSMISSION CASE [075] Up to transmission: 3 746999	001
504	A 140 277 14 14	INTERMEDIATE PLATE TRANSMISSION CASE [076] As of transmission 3 747000	001
505	A 126 277 14 80	GASKET (OIL SEPARATOR PLATE)	001
506	A 126 277 12 94	REINFORCEMENT BOTTOM COVER	001
507	N 007985 005191	SCREW	004
508	N 000137 005203	SPRING WASHER	004
520	A 126 270 01 98	FILTER Replaced by: A 140 270 02 98	-
520	A 140 270 02 98	FILTER	002
521	A 126 270 02 29	OIL GUIDE	001
524	A 126 277 00 47	TUBE BOTTOM COVER	001
529	N 000933 006124	SCREW Replaced by: N 304017 006012	-
529	N 304017 006012	SCREW COVER TO TRANSMISSION CASE	009
530	N 000137 006204	SPRING WASHER COVER TO TRANSMISSION CASE	009
531	A 140 270 50 07	VALVE BODY ASSEMBLY Replaced by: A 140 270 67 07 • A 140 277 14 14 [1 pcs.] [077] EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO TRANSMISSION 3 746999 [697] PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART	-
531	A 140 270 67 07	VALVE BODY ASSEMBLY [290] INAPPLICABLE TO AMG [697] PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART	001
532	A 126 270 05 70	REGULATOR VALVE	001
537	A 126 277 00 73	LOCK PISTON REGULATOR VALVE 24 MM/ K1	001
537	A 126 277 00 73	LOCK GOVERNOR PRESSURE BOOSTER VALVE 24 MM	001
537	A 115 277 06 73	LOCK PISTON REGULATOR VALVE 19 MM	001
537	A 115 277 06 73	LOCK PISTON REGULATOR VALVE 19 MM/V1	001
537	A 126 277 10 73	LOCK 16 MM	002
537	A 126 277 00 73	LOCK PISTON REGULATOR VALVE 24 MM / K2	001
537	A 126 277 00 73	LOCK SHIFTING PRESSURE REGULATOR VALVE 24 MM	001
538	A 126 277 12 73	LOCK PISTON REGULATOR VALVE B 1	NB
539	A 124 277 00 75	PIN PISTON REGULATOR VALVE B 1	NB
540	A 126 270 00 80	SEAL RING CONTROL PRESSURE	001
541	N 000084 004438	SCREW END PLATE TO VALVE BODY ASSEMBLY	033
542	A 126 270 00 72	SCREW REGULATOR VALVE	001
543	A 126 997 09 86	PLUG GOVERNOR PRESSURE BOOSTER VALVE	001
544	A 126 270 04 70	REGULATOR VALVE LUBRICATION PRESSURE	001
545	A 115 993 15 05	SPRING	001
546	A 116 991 00 29	BALL PLASTIC	NB
547	A 126 270 19 89	VALVE THROTTLE CHECK VALVE	001
548	A 115 993 28 04	SPRING Replaced by: A 140 993 82 01	-
548	A 140 993 82 01	SPRING THROTTLE CHECK VALVE	001
549	A 126 277 22 36	VALVE PART CHECK VALVE A 2-4	001
550	A 126 993 69 03	SPRING CHECK VALVE A 2-4	001
551	A 126 277 48 36	VALVE PART CHECK VALVE K 2	001
552	A 126 993 20 02	SPRING CHECK VALVE	001
553	A 126 277 19 36	VALVE PART CHECK VALVE	001
554	A 126 270 26 89	VALVE (DISC VALVE) BLUE	001
555	A 126 270 38 89	VALVE Replaced by: A 140 270 00 89	-
555	A 140 270 00 89	VALVE PRESSURE RELIEF VALVE NATURAL COLORED [098] As of transmission 362: 3 990454 364: 3 983224 366: 3 973740 369: 3 979844 370: 3 983224 371: 3 979844 ELIMINATED - NO LONGER REQUIRED	001
556	A 126 270 42 89	VALVE PRESSURE RELIEF VALVE BLACK	001
557	A 126 270 25 89	VALVE (DISC VALVE) NATURAL COLORED	001
558	A 126 270 05 98	FILTER	001
559	A 126 277 58 29	SHIFT VALVE LOCK-OUT VALVE K 1	001
560	A 126 993 44 02	SPRING LOCK-OUT VALVE K 1	001
561	A 126 277 18 40	BRACKET LOCK-OUT VALVE K 1	001
562	A 126 277 23 36	VALVE PART CHECK VALVE K 1	001
563	A 126 993 65 03	SPRING CHECK VALVE K 1	001
564	A 126 270 18 89	VALVE LUBRICATION PRESSURE	001
565	A 126 270 09 89	VALVE MODULATION PRESSURE	001
566	N 000084 005174	SCREW PISTON BODY TO VALVE BODY ASSEMBLY	002
567	N 914005 006014	COMBINATION BOLT Replaced by: N 304017 006029 • N 000137 006204 [1 pcs.]	-
567	N 304017 006029	SCREW VALVE BODY ASSEMBLY TO TRANSMISSION	012
567	N 914005 006022	COMBINATION BOLT VALVE BODY ASSEMBLY TO TRANSMISSION	003
569	A 129 277 01 95	OIL FILTER	001
570	N 914026 005109	COMBINATION BOLT Replaced by: N 007985 005541 • N 000137 005203 [1 pcs.]	-
570	N 007985 005541	SCREW Replaced by: N 007985 005504	-
570	N 007985 005504	SCREW	003
571	A 126 271 11 80	GASKET Replaced by: A 126 271 10 80	-
571	A 126 271 10 80	GASKET OIL PAN	001
572	A 126 270 10 12	OIL PAN WITH SCREW PLUG	001
573	N 000908 010004	SCREW PLUG Replaced by: N 000000 000648	-
573	N 000000 000648	SCREW PLUG, FILLING OIL DRAIN	001
574	N 007603 010112	SEAL RING OIL DRAIN	001
575	N 000933 008152	SCREW Replaced by: N 304017 008027	-
575	N 304017 008027	SCREW OIL PAN TO TRANSMISSION	006
576	N 000125 008418	WASHER Replaced by: N 000125 008443	-
576	N 000125 008443	WASHER OIL PAN TO TRANSMISSION	006
580	A 126 270 06 80	GASKET KIT Replaced by: A 126 270 06 35	-
580	A 126 270 06 35	GASKET KIT VALVE BODY ASSEMBLY	001
